Magnetic Corner Tracks & Non Magnetic Tracks

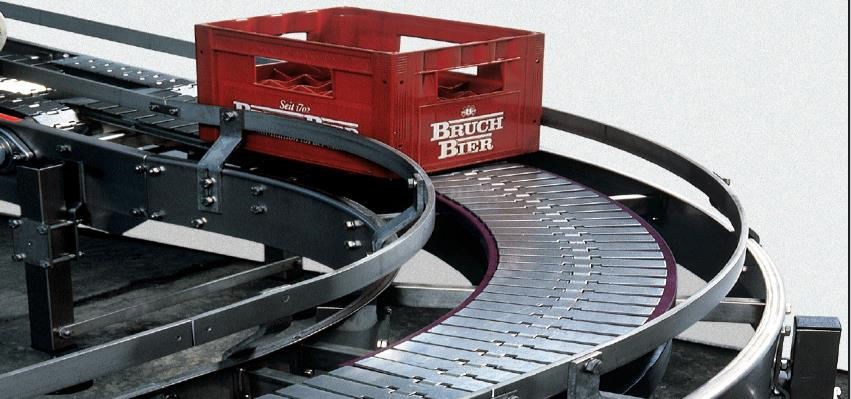

GRANDEE magnetic tracks and Tab chain tracks a re the ideal solution for the corners. Specially manufactured permanent magnets keep the chain in the groove. The complete curve system consists of a upper part with magnets and a separate return curve mounted together. The return infeed shoe will ensure the smooth guiding of the chains into the return curve. Cleaning of the tracks can be done easily by lifting the chains.

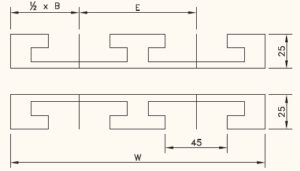

Specification For Magnetic Corner Tracks- Center Radius-500 With 100 mm Extension Each Side
Track Rows |
Track width |
45 degree |
90 degree |
|---|---|---|---|
|
1
|
100
|
GMCT-101
|
GMCT-201
|
|
2
|
185
|
GMCT-102
|
GMCT-202
|
|
3
|
270
|
GMCT-103
|
GMCT-203
|
|
4
|
344
|
GMCT-104
|
GMCT-204
|
|
5
|
440
|
GMCT-105
|
GMCT-205
|
|
6
|
525
|
GMCT-106
|
GMCT-206
|
PITCH -85MM
Available in :- Grandee Make
MOQ- 5 Sets
Specification For Magnetic Corner Tracks- Center Radius-750 to 1000 With 100 mm Extension Each Side
Track Rows |
Track width |
45 degree |
90 degree |
|---|---|---|---|
|
1
|
100
|
GMCT-301
|
GMCT-401
|
|
1
|
111
|
GMCT-302
|
GMCT-402
|
PITCH -85MM
Available in :- Grandee Make
MOQ- 5 Sets
Specification For Magnetic Corner Tracks- Center Radius-860
Track Rows |
Track width |
45 degree |
90 degree |
|---|---|---|---|
|
1
|
200
|
GMCT-601
|
GMCT-701
|
|
1
|
214
|
GMCT-602
|
GMCT-702
|
PITCH -85MM
Available in :- Grandee Make
MOQ- 5 Sets
Specification For Magnetic Corner Tracks – Center Radius-590 with 100 extension each side
Track Rows |
Track width |
45 degree |
90 degree |
|---|---|---|---|
|
1
|
280
|
GMCT-801
|
GMCT-901
|
PITCH -85MM
Available in :- Grandee Make
MOQ- 5 Sets

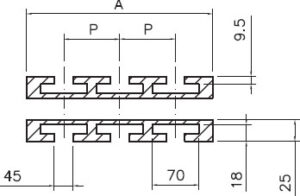

Specification For TAB Chain Corner Tracks – Center Radius-500 With 50 extension each side
Track Rows |
Track width |
45 degree |
90 degree |
|---|---|---|---|
|
1
|
100
|
GTABCT-1001
|
GTABCT-2001
|
|
2
|
185
|
GTABCT-1002
|
GTABCT-2002
|
|
3
|
270
|
GTABCT-1003
|
GTABCT-2003
|
|
4
|
344
|
GTABCT-1004
|
GTABCT-2004
|
|
5
|
440
|
GTABCT-1005
|
GTABCT-2005
|
|
6
|
525
|
GTABCT-1006
|
GTABCT-2006
|
Pitch -85mm
Available in :- Grandee Make
MOQ- 5 Sets
Specification For TAB Chain Corner Tracks- Center Radius-610 to 1000 With 50 extension each side
Track Rows |
Track width |
45 degree |
90 degree |
|---|---|---|---|
|
1
|
130
|
GTABCT-3001
|
GTABCT-4001
|
|
2
|
250
|
GTABCT-3002
|
GTABCT-4002
|
|
3
|
370
|
GTABCT-3003
|
GTABCT-4003
|
|
4
|
490
|
GTABCT-3004
|
GTABCT-4004
|
|
5
|
610
|
GTABCT-3005
|
GTABCT-4005
|
|
6
|
730
|
GTABCT-3006
|
GTABCT-4006
|
Pitch -120 for 4.5 inch chains
Available in :- Grandee Make
MOQ- 5 Sets
